Product Specification

Brand Name: Diese

Support APP: No

Model Number: KR1202-COM RF Relay Receiver and Transmitters

Package: Yes

Use: Electric Door

Use: Lighting

Use: Automated curtains

Use: Switch

Use: Universal

Frequency: 433 MHz

Wireless Communication: RF

Channel: 2

Working voltage: DC 12V

Input Voltage: 1~250V

Output Voltage: 1~250V

Quiescent Current: 5mA

Max current: 10A

RF frequency: 433MHz

Working temperature: -30~+80

Receiving Sensitivity: >97dbm

Amount of storage remote controls: 25 pieces

Support encoding: 1527 Leaning code/ 2262 fixed code

RF Operating mode: ASK superheterodyne wireless reception

Receiving range: Open space is more than 50 meters

Remote operating mode: Momentary/ Toggle/ Latched Mode

Application scenario: Family, Farm, Factory, Office, Supermarket

Application2: Garage, Light, Automated curtains, Fan, Door, Gate, LED, Lamps, Motor

Description:

RM19411534193324908

HTB1gTE9XijrK1RjSsplq6xHmVXas
Product description
433MHz Universal Wireless Remote Control DC12V 2CH rf Relay Receiver and Transmitters for Universal Garage and Light Control

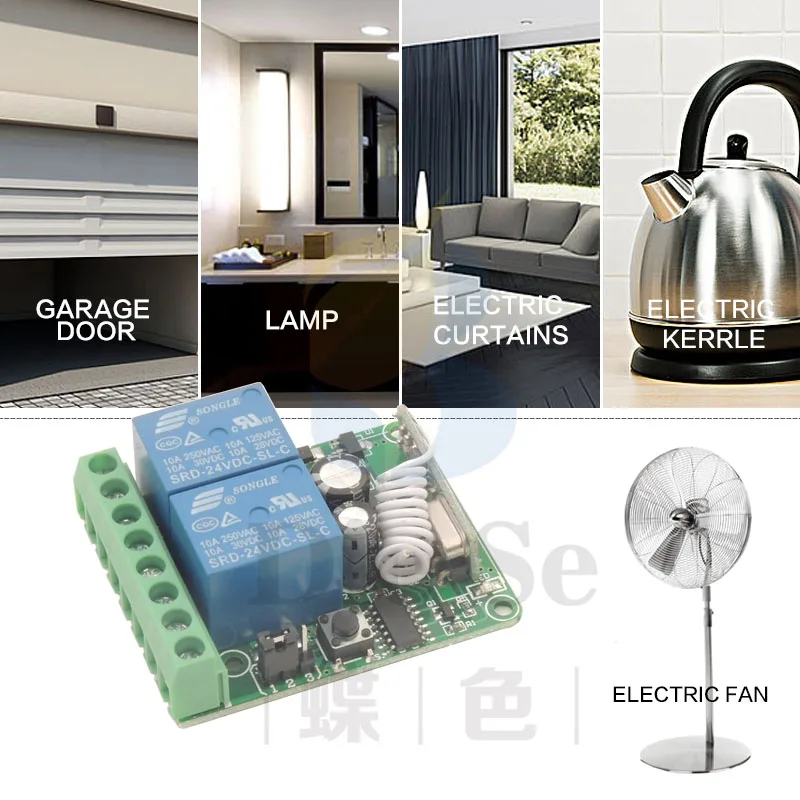

  Product Application Area

Products can be used in lighting, garage doors, shutter doors, remote control curtains, DC motors, motor reversing. and many more

1



  Package include

Order Model 1:

Receiver module
Remote Control  (include battery )




NO : Normal open           COM  :  Common            NC : Normal closed


  Products  Display




1535765458(1)

Tips:

All of our products are of high quality! If you have other needs, please feel free to purchase them in our store.


  Products  Data

  • Working Voltage  :  DC12V
  • Output vlotage  :  1~250V
  • Quiescent Current  :  <5MA
  • Max current  :  10A
  • RF frequency  :  433MHz
  • Working temperature  :  -30~+80
  • Receiving Sensitivity  :  >97dbm
  • Amount of storage remote controls  :  25 pieces
  • Support encoding  :  1527 Leaning code/2262 fixed code
  • RF Operating mode  :  ASK superheterodyne wireless reception
  • Receiving range  :  Open space is more than 50 meters
  • Remote operating mode  :  Momentary Mode /Toggle Mode /Latched Mode

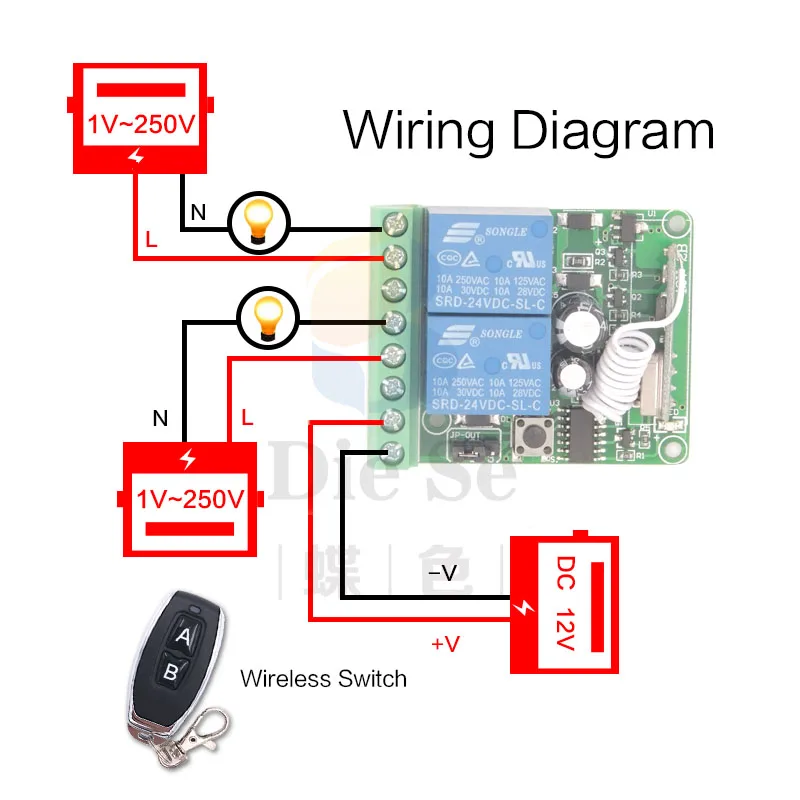

  Wiring diagram

1 NC:Normally closed Output
2 COM:Common port
3 NO:Normally open Output





  Operating Mode

You can match the Remote Control with the Receiver Switch Module  in 3 modes.




  Set Up

   -  Part 1:  Delete the existing data about remote mode

     Note:   When you receive our products, it maybe set in one remote mode randomly, that because each product got test when it can be arranged to shipment.So, please delete the existing data about  remote mode  for the first application.

Press and hold the learning button (on the Receiver) 5 seconds. The existing data will be deleted succeed.
After deleted the data, all the remote control cannot work any more.

 -  Part 2:  Select the operation mode

Momentary Mode: Use wire jumper cap to short port “1” and port “2” interfaces.

Toggle Mode: Use wire jumper cap to short port “2” and port “3” interfaces.

Latched mode: Interfaces port “1” and port “2” and port “3” are not connected


-  Part 3:  Match the receiver and remote control

1. Press the learning button(on the Receiver) once, the indicator lights up;

2. Press button “A” on the remote control. Wait for 3 seconds.

3. Press button “B” on the remote control. Wait for 3 seconds. Succeed.


On this products details page, there is a demonstration video available.

*If you do not understand clearly. Please send us a message to let us know. We will do our best to service each of our customers. Enjoy your shopping!*



HTB1FePBXizxK1RjSspjq6AS.pXat



RM19411534193324910
